China Portable Borehole Inspection Camera with 360 Degree Rotation and 11pcs LED Lights for Downhole Camera Pipe Survey Equipment wholesale

Portable Borehole Inspection Camera with 360 Degree Rotation and 11pcs LED Lights for Downhole Camera Pipe Survey Equipment

Name: Portable Borehole Inspection Camera with 360 Degree Rotation and 11pcs LED Lights for Downhole Camera Pipe Survey Equipment
Brand: Gold
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :Gold

Model Number :GYGD IV

Certification :ISO9001 CCC CE

Place of Origin :Chongqing, China

MOQ :1 set

Price :Negotiated

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :1 set per 5 days

Delivery Time :5-8 working days

Packaging Details :Carton

Product Name :borehole inspection camera

Screen Display :1024*768 pixels

Depth Range :0~2000 meters

Sensor :Sony 1/3 inch CCD, 0.1 Lux

Cable Tensile Strength :250KG

Pressure :Max 150Mpa

Light :11pcs LED lights, luminance adjustable

Storage :SD card/U disk

Custom Service :Acceptable for logo, design and etc

Winch Type :Electrical, auto cable arrangment

Contact Now

Add to Cart

View Product Description

Borehole Cctv Camera Borehole Camera CCTV Pipe Survey Equipment Dual Wheel Drive Pipe Crawler

Portable borehole inspection camera provides 360 degree video recording, widely used in deep water well mornitoring. It is waterproof, and the inspection depth can be 0-1000m. Maximum Pressure is 20Mpa.

Features:

DOWNHOLE and SIDE VIEW color camera with 360 degree rotation. Forward and reverse direction control. White balance. Long life, shock-proof, high intensity LED lighting for side view and forward view.

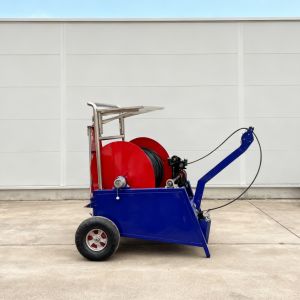

Electric portable winch with wheels, easy to transport
Speed, light and focus can be adjustable according to field condition
With keyboard to edit during recording
Company name and postion can be write on the video
Large storage, USB drive

Technical Specification:

Description	Parameter	Remarks
Imaging chip	1/3”color CCD
Resolution	850TVL
Focusing	Automatic	Can also be manual
Lighting	High power lighting LED
Measuring depth	0-2000m
Color rotating lens	12,000,000 pixel sensitivity 1.5 Lux
Viewing Angle	360 degree Hole Wall
Scan	Automatic scan
Control	Dynamic change speed or footage
